Onboard/Railway Network Camera

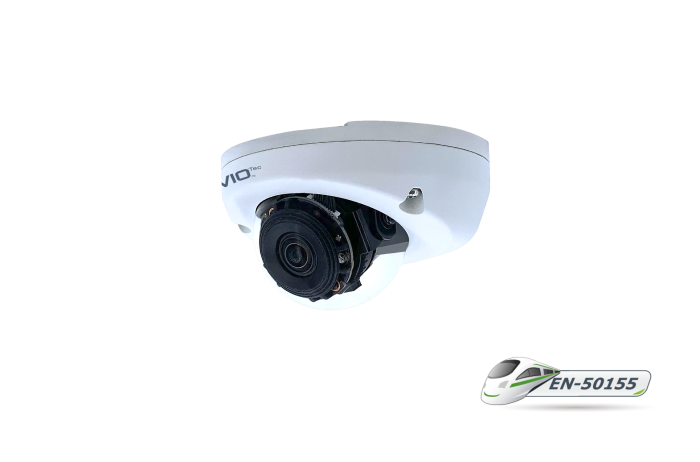

NDM365 Onboard Camera

H.265, 5MP at 30 fps, HFOV 130°/110°/80° Fixed Lens, Up to 25M (82ft) IR Distance, Extreme WDR with Multi Shutters, Ultra Low Light, IK10 Vandal Resistance, IP67 Weatherproof, Extreme Weather -40°C~70°C, EN50155 and EN45545 Railway Standards
  • 1/2.8” 5MP CMOS Progressive Sensor
  • 5MP @ 30 fps
  • Lens Options:
    • 2.4mm Lens F2.1 (130° HFOV)
    • 2.8mm Lens F1.6 (110° HFOV)
    • 4.0mm Lens F1.6 (80° HFOV)
  • Smart IR+ Illuminator with up to 25 m (82 ft) IR Range
  • Smart Filtering Function: Removable IR-cut Filter for Day and Night
  • Extreme WDR up to 140 dB with Multi-Shutter Technology
  • H.265/H.264/M-JPEG Video Compression
  • M12 Connector for Ruggedized Applications
  • Hard-Coated Dome Cover with Rain-Wash Coating
  • Anti-Corrosion Powder-Coated Finish
  • Robust Aluminum Die-Cast Housing
  • IK10 Vandal Resistant, IP67 Weatherproof
  • Operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Built-in Microphone, Alarm I/O, Audio I/O, and MicroSD Card Slot
  • ONVIF® Profile G, S, T, M
  • NDAA Compliant

Camera

Image Sensor

1/2.8” 5MP Progressive CMOS

Lens

2.4mm
Fixed lens, 2.8 mm, F2.1, IR-corrected
Field of view (H/V): 130.0°/73.0°
2.8mm
Fixed lens, 2.8 mm, F1.6, IR-corrected
Field of view (H/V): 110.0°/57.0°
4.0mm
Fixed lens, 4.0 mm, F1.6, IR-corrected
Field of view (H/V): 80.0°/58.1°
Day and Night

ICR
Minimum Illumination

With LightSolver II™:
Color: 0.006 lux
B/W: 0.0009 lux; 0 lux (IR on)
Shutter Speed

1/71428 s to 1/3 s

Video
Video Compression

H.265/H.264/MJPEG

Resolution

2592 x 1944 to 320 x 240

Frame Rate

H.265/H.264: Up to 30 fps in all resolutions; up to 60 fps at 1920 x 1080
Motion JPEG: Up to 15 fps in all resolutions

Video Streaming

Triple, individually configurable streams in H.265, H.264, and Motion JPEG
Controllable frame rate and bandwidth (VBR/CVBR) for H.265/H.264/Motion JPEG

WDR

Up to 140 dB depending on scene

Profile Management

Support up to configurable 10 schedules (Day/Night/Manual) with start time and duration
Image Settings

Saturation, contrast, brightness, sharpness, white balance, backlight compensation, noise reduction, hue adjustment, day/night threshold, gain control, defog, dynamic text, rotation: 0°, 90°, 180°, 270°, mirroring
Image Stabilization

Electrical Image Stabilization (EIS)
Motion Detection

5 areas
Privacy masks

5 areas
ROI (Region of Interest)

5 areas

Audio
Audio Features

Automatic gain control
Audio Detection
Audio Streaming

Two-way audio
Audio Encoding

G.711, G.726
Audio Input/output

Built-in microphone input or
External line input/line output (optional)

Network
Network Protocols

RTMP IPv4, IPv6, HTTP, HTTPS, TCP/IP, UDP, UPnP, RTSP, RTCP, RTP, SMTP, NTP, DHCP, FTP, Zero Configure, 802.1x, Firewall, NFS, DNS, DDNS, SNMP v2c/v3, QoS, LDAP, ICMP, Bonjour, SSL, RTMP

System Integration
Application

Open API for software integration
ONVIF® Profile G, S, T, M, specifications at onvif.org
Event Conditions

Analytics, scheduled event
Device status: motion detection, tampering alarm, audio detection, network loss detection
I/O: alarm input, audio input
Event Actions

Record video: SD card and network share
Upload of snapshots or video clips: FTP, HTTP network share, and email
Notification: email, HTTP, TCP, FTP, SMTP
External output, alarm output activation

Analytics

Advanced

Object classes: humans, vehicles
Scenarios: behavior detection and counting analytics, including line crossing, intrusion, loitering

Essential

Object left, object removed

Approvals

EMC

CE/FCC Class A

Environment

EN50155, EN45545 (cable), IP67, IK10

General

Casing

Color: white

Power

Power over Ethernet (PoE) IEEE 802.3af class 3, max. 8w

Connectors

Standard: RJ45 PoE
Factory optional interfaces: Audio line-in/-out; Alarm-in/-out terminal block
Ruggedized: PoE M12 (4-pin, D-coded, Female)
Ruggedized: Audio-in/-out & Alarm-in/-out M12 (8-pin, A-coded, Female)
3-Axis Adjustment

Pan: ± 30°
Tilt: 80°
Rotation: 355°

IR Illumination

Smart IR LEDs range reaches 25 m (82 ft) or more depending on the scene

Reset Button

Support

Storage

Support for microSD/microSDHC/microSDXC card
Snapshot to network storage
Browser

Google Chrome (recommended), Microsoft Edge, Firefox, Safari
Operating Conditions

Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Humidity: 10-95% (non-condensing)
Storage Conditions

Temperature: -20 °C to 70 °C (-4 °F to 158 °F)
Dimensions

Height: 64 mm (2.52 in)
Ø 110.5 mm (4.35 in)

Weight

425 g (0.94 lb)

Language

English/Traditional Chinese

Order Information

Standard model:
NDM365-024/-028/-004, fixed 2.4mm/2.8mm/4mm lens, with RJ45 PoE connector
NDM365M-024/-028/-004, fixed 2.4mm/2.8mm/4mm lens with M12 PoE (4-pin, D-code, Female)
Audio and alarm model:
NDM365A-024/-028/-004, fixed 2.4mm/2.8mm/4mm lens with RJ45 PoE connector
NDM365MA-024/-028/-004, fixed 2.4mm/2.8mm/4mm lens with M12 PoE (4-pin, D-coded, Female & 8-pin, ACoded, Female)
