Onboard/Railway Network Camera

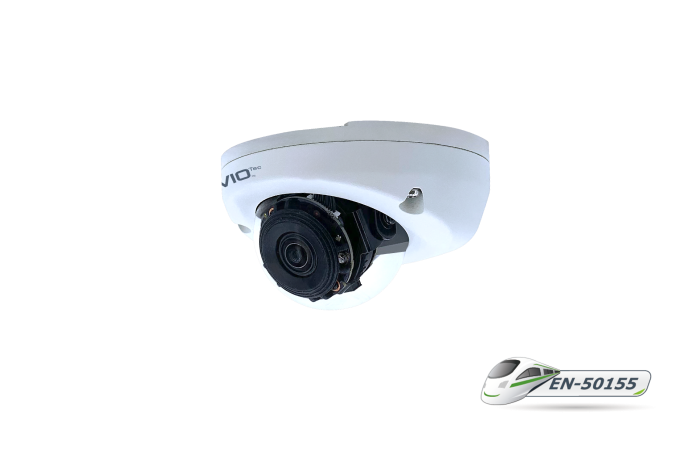

NDM362 Onboard Camera

H.265, Full HD 1080P at 60 fps, FOV 130o Fixed Lens, Up to 15M(50ft) IR Distance,Extreme WDR with Multi Shutters, Ultra Low Light, IK10 Vandal Resistance, IP66 Weatherproof, Extreme Weather -40°C~60°C, EN50155 Railways Applications
  • 1/2.8” 2MP CMOS Progressive Sensor
  • Full HD 1080P @ 60 fps
  • 2.8mm Lens F1.6 (110o FOV)/ 2.4mm Lens F2.1 (130o FOV)
  • Ultra Low Light (0.0005 Lux)
  • IR Illuminator: 15M(50ft) IR Distance, Smart IR+
  • Smart Filtering Function: Removable IR-cut Filter for Day and Night
  • Extreme Wide Dynamic Range (WDR) with Multi Shutters (140dB)
  • H.265/H.264/M-JPEG Video Compression
  • Intelligent VA Functions: Tampering Alarm, Object Counting, Intrusion Detection, Alarm Detection; Advanced Motion Detection (5 areas)
  • Support Image Stabilization; Corridor format
  • SDS (Smart Dynamic Streaming) Plus: Smart ROI, FPS, GOP
  • Support M12 connector
  • Hard Coated Cover with Rain-wash Coating
  • Anti-Corrosion Powder Coating
  • Sturdy Camera Body from Aluminum Die Casting
  • IK 10 Vandal Resistant, IP 66 Weatherproof
  • Operating Temperature from -40oC to 60oC / -40oF to 140oF
  • Alarm-in/-out, Audio-in/-out, Micro SD Card Slot, Built-in microphone
  • ONVIF Profile S, G, Q, T

Sensor

Image Sensor

1/2.8” 2MP CMOS Progressive Sensor

Effective Pixels

1920(H) x 1080(V)

Minimum Illumination

Color: 0.005 Lux; B/W: 0.0005 Lux

Lens

Lens Type

Fixed lens

Focal Length

2.8mm F1.6 (FOV 110o)/ 2.4mm F2.1 (FOV 130o)

Field of View

2.8mm: 110°(H)/ 62°(V)/ 137°(D)
2.4mm: 130°(H)/ 73°(V)/ 163°(D)

Built-in IR Illuminator

Illumination Distance

Up to 15M(50ft), 850nm Wavelength

IR Control

Smart IR+

Image Setting

Optical Zoom

Zoom Control, Focus Control (Slider Control): Auto Focus, Micro Adjustment

Shutter Speed

1/3~1/71428

WDR

Multi shutter WDR 140dB

Day/Night

Auto/ Force Day/ Force Night/ Schedule/ Light Sensor

ICR Day/Night

Force Day/ Force Night/ Auto (Follow Day Night Control)/ SyncDayNight

Gain Control

Yes

Auto Exposure

Auto/ 50Hz/ 60Hz / Locked

White Balance

Auto/ OFF (R Gain, RG Gain, B Gain, BG Gain)

Image Adjustment

Brightness, Contrast, Saturation, Sharpness, Hue Adjustment

BLC

Disable / Enable

Orientation

Mirror/ Rotate (0°/90°/180°/270°)

Privacy Mask

5 Masks

OSD (Overlay)

OFF, Camera Name, Date/Time, Custom Text

Local Contrast

Yes

Defog

OFF/ Low/ Medium/ High

Noise Reduction (Noise Filter)

Yes

ROI (Region of Interest)

Stream 1/ Stream 2; 5 Zones, Low / Medium /High

Image Profile Setting

2 Profiles: Day & Night: Auto Switch /Force Day/Force Night

Profile Management

10 Profiles: Schedule, Rename, Access, Export, Import

Video

Video Compression

H.265 / H.264 / M-JPEG

Video Streaming

Triple streaming

Video Resolution/Frame Rate

NTSC: Full HD 1080P (1920 X 1080) @60FPS, HD 720P (1280 x 720) @60FPS, D1 (720x576)/ D1 (720x480)/ VGA
(640x480)/640x 360/ QVGA (320x240) @60FPS / VGA (640x 360)/ QVGA (320x240) @60FPS
PAL: Full HD 1080P (1920 X 1080) @50FPS, HD 720P (1280 x 720) @50FPS, D1 (720x576)/ D1 (720x480)/ VGA (640x480)/640x 360/ QVGA (320x240) @50FPS / VGA (640x 360)/ QVGA (320x240) @50FPS

SDS (Smart Dynamic Streaming)

Smart GOP, FPS, ROI

Bit Rate

128K-8000K

Event Management

Event Trigger

Alarm Detection, Motion Detection, Tampering Alarm, Object Detection,

Event Actions

Save Video/Snapshot to SD card (5 seconds pre-recording, 100 seconds post-recording, AVI & JPEG format) File upload stream to FTP Server, HTTP Network Shortage
E-mail notification via SMTP
Alarm output

Alarm Handler

On/ Off/ Schedule

Motion Detection

On/ Off/ Schedule, 5 Zones, Sensitivity: range 1-100

Tampering Alarm

On/ Off/ Schedule, Sensitivity: Low/ Medium/ High

Object Detection

On/ Off/ Schedule
Object-Counting/ Zone Object-Counting/ Zone Intrusion/ Line Crossing/ Loitering/ Wrong Way/ Object Left/ Object Removed

Network Loss Detection

On/ Off

Network

Interface

10/100 Mbps Ethernet, RJ-45/ M12 connector (optional)

Protocol

IEEE802.1x, DNS, DDNS, DHCP, Firewall, FTP, GB28181, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RTP, RTSP, RTMP, SSL, SSH, SNMP, SNMP V2c, SNMP V3, SMTP, TCP/IP, UDP, Bonjour, UPnP, ONVIF

Security

HTTP encryption/Multi-level user management (15 users)/IP address filtering

Connectivity

ONVIF Profile S, G, Q, T

DDNS Settings

Support DynDNS/ NO-IP/ Two-DNS server

Multicast Function

Yes

Browser

Google Chrome (recommended), Internet Explorer, Mozilla Firefox

General

Operating Temperature

-40oC to 60oC / -40oF to 140oF

Humidity

10% ~ 90%, No Condensation

Weatherproof

IP66

Vandal Proof

IK10

Dimension

Φ110.5mmx64mm

Weight

400g

Alarm I/O

Alarm-In/-out (terminal block)

Audio

Two-way, Line-in/ Line-out (phone jack), G.711 PCM 8KHz, built-in microphone

Power Input

PoE (IEEE 802.3af), DC12V: 6W max.

Micro SD

Micro SDHC support up to 128GB

Reset button

Yes

Certification

CE/FCC Class A/EN50155

Application

SDK available for application development

Ordering Information

NDM362-028 with 2.8mm lens
NDM362-024 with 2.4mm lens
NDM362-028-M with 2.8mm lens, M12 power connector NDM362-024-M with 2.4mm lens, M12 power connector
