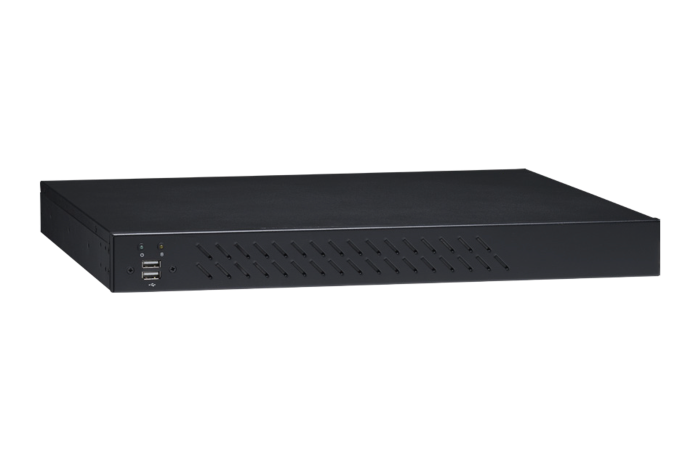

NAP1502 1U Desktop AI Server

Enhanced artificial intelligence workloads
The NAP1502 features Intel® Core™ Ultra processors (Series 2) with integrated NPU, delivering up to 36 TOPS AI performance and reducing CPU workload by up to 70%. It supports up to 64GB DDR5 (Intel® XMP/XTU optimized), Intel® Arc™ Graphics, dual 2.5GbE LAN, DP 1.4 & HDMI® 2.0b outputs. Storage includes NVMe SSD and 2 × 3.5” HDDs with RAID 0/1 support for high-speed, high-capacity AI and multimedia workloads.

  • AI NVR workstation
  • System 1U Rackmount
  • Intel® Core™ Ultra Processor (Serial 2)
  • DDR5 up to 64GB
  • 2 x 3.5” HDDs (support software RAID 0,1)
  • 2 x NVME SSD
  • Display DP 1.4, 1 x HDMI® 2.0b x1
  • Intel® Arc™(Xe-Core) Graphics
  • 2 X 2.5GbE Intel® Ethernet
  • Operating temperature: 0°C ~ 40°C, storage: -20°C ~ 70°C

Processor

Intel® Core™ Ultra Processor (Series 2)

Memory

2 x DDR5 6400 C/SO-DIMM, non-ECC, up to 64GB
Support OOB ECC in W880 (optional)

Chipset

Intel® Q870 (option W880)

I/O Interface - Front

2 x USB 2.0 Type-A (Per port output Max 500mA)

I/O Interface - Rear

4 x USB 3.2 Gen 1, Type-A (Per port output Max 900mA)
1 x DP 1.4 (4K@60fps)
1 x HDMI® 2.0b (4K@60fps)
2 x 2.5GbE RJ45 port

Storage

2 x 3.5” HDDs, supports software RAID 0,1
2 x M.2 Key M 2280 (1 x NVMe Gen5 and 1 x NVMe Gen4)
1 x M.2 Key B 2242 (NVMe SATA)

Power Supply

Single PSU 300W

Dimensions

482.45mm (W) x 43.5mm (H) x 576.63mm (D)

Environment

Operating temperature:
- Ambient with air flow: 0°C~40°C
- Storage temperature: -20°C~70°C
Relative humidity: 0%~90% (non-condensing)

Certifications

CE approval
FCC Class A
CB/UL Option
